Floor Plans
5 models, all 2-bedroom townhomes with a loft.
Real floor plans and dimensions from Don K. Clarke Construction's current sales booklet, Phase 7. Every model includes a main floor primary bedroom, a second bedroom/den, an unfinished basement, and a loft above the garage.
The Empire
1,340 sq ft
Representative exterior rendering — the builder's booklet shows this same elevation for every model.
20'0" x 18'6"
Great Room
12'6" x 16'0"
Master Bedroom
10'0" x 9'8"
Kitchen
9'6" x 13'6"
Bedroom/Den
17'9" x 22'2"
Garage

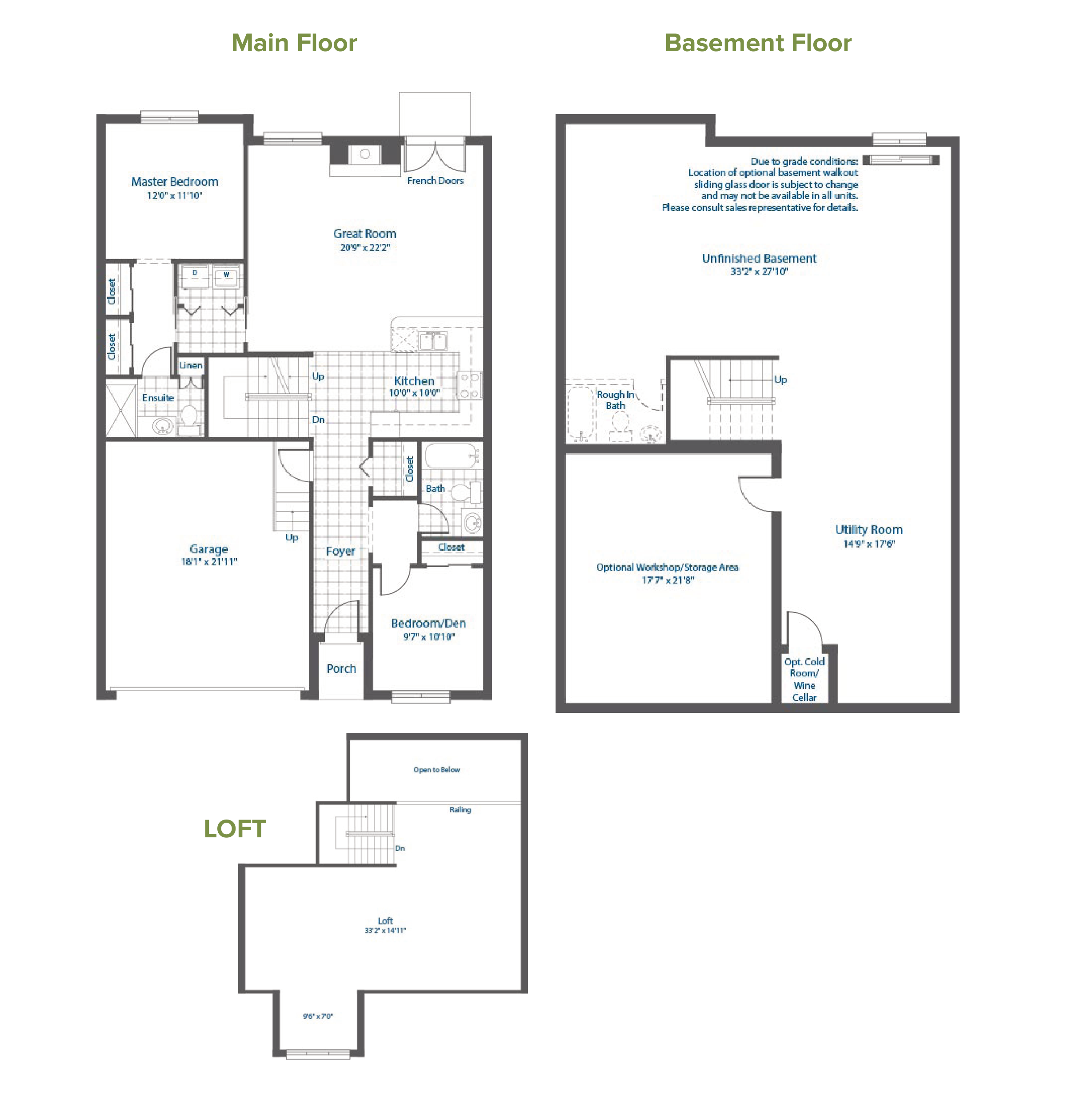

The Russet
1,280 sq ft
Representative exterior rendering — the builder's booklet shows this same elevation for every model.
20'9" x 22'2"
Great Room
12'0" x 11'10"
Master Bedroom
10'0" x 10'0"
Kitchen
9'7" x 10'10"
Bedroom/Den
18'1" x 21'11"
Garage

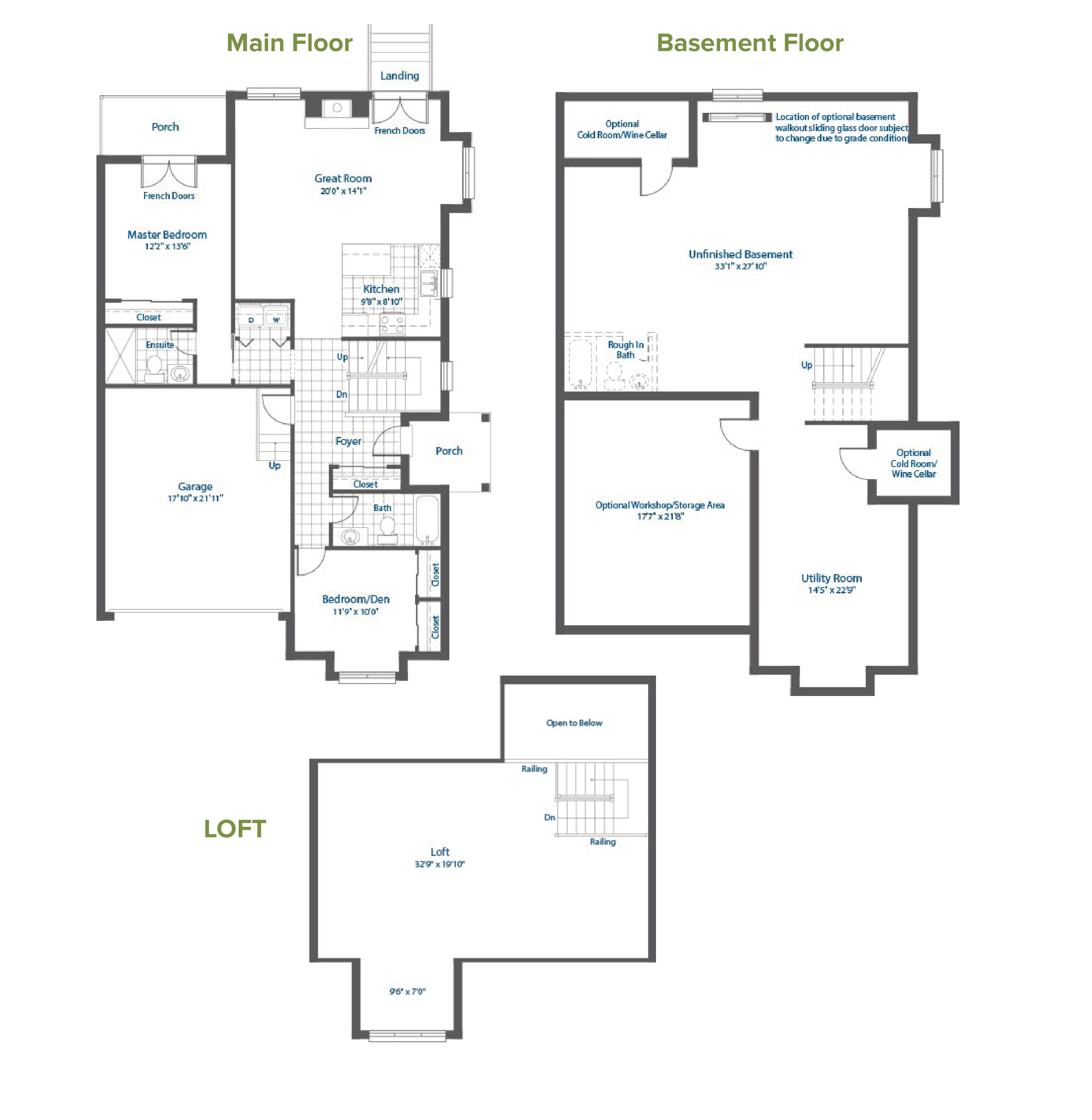

The Aurora
1,324 sq ft
Representative exterior rendering — the builder's booklet shows this same elevation for every model.
20'0" x 14'1"
Great Room
12'2" x 13'6"
Master Bedroom
9'8" x 8'10"
Kitchen
11'9" x 10'0"
Bedroom/Den
17'10" x 21'11"
Garage

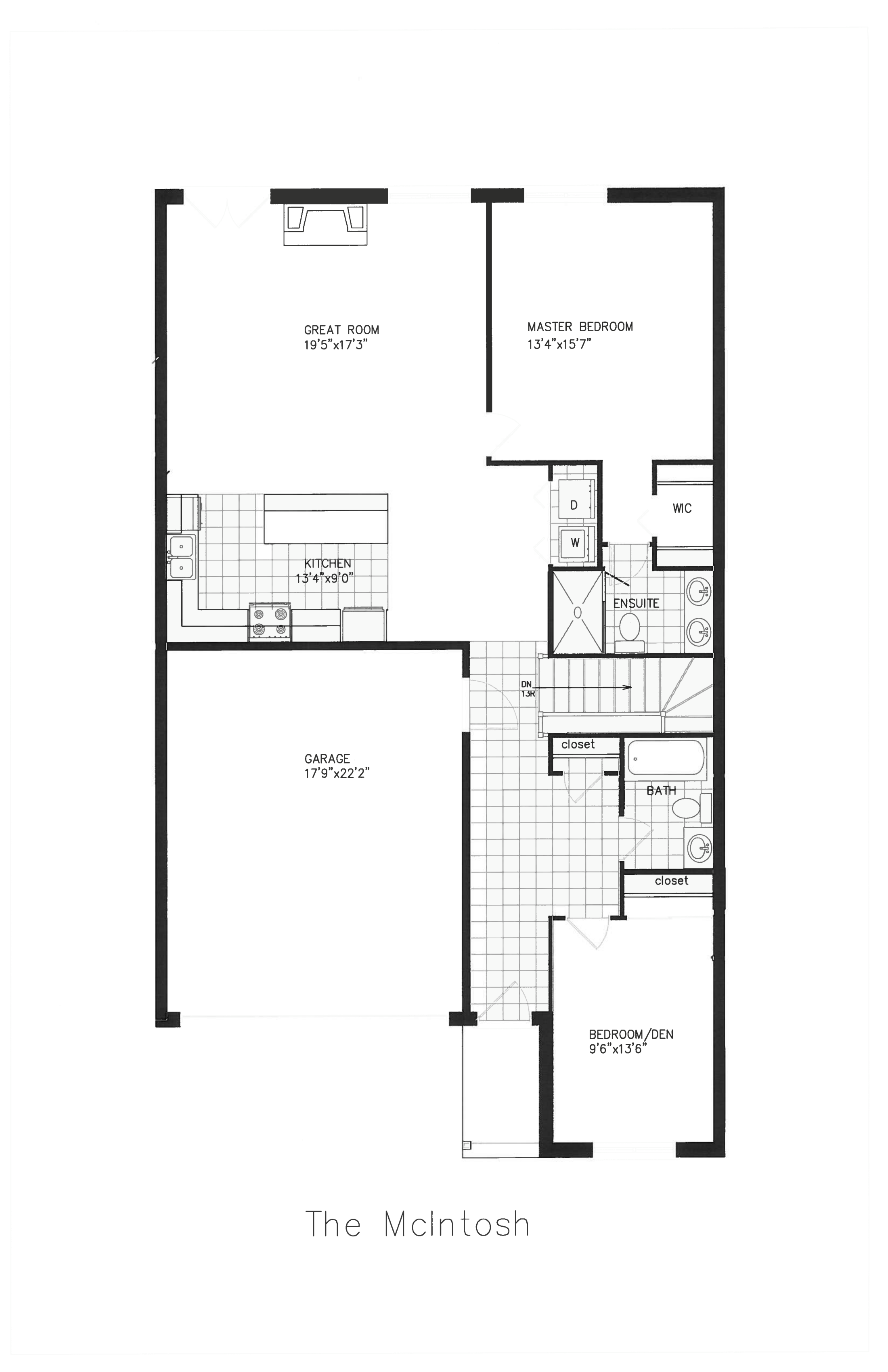

The McIntosh
1,320 sq ft
Representative exterior rendering — the builder's booklet shows this same elevation for every model.
19'5" x 17'3"
Great Room
13'4" x 12'1"
Master Bedroom
10'0" x 9'0"
Kitchen
9'6" x 11'2"
Bedroom/Den
17'9" x 22'2"
Garage
The Cortland
1,335 sq ft
Representative exterior rendering — the builder's booklet shows this same elevation for every model.
19'5" x 17'3"
Great Room
10'9" x 13'6"
Master Bedroom
9'6" x 8'6"
Kitchen
9'4" x 11'1"
Bedroom/Den
17'10" x 21'11"
Garage
